CICE-YOLO: Tomato Ripeness Detection

TL;DR

Tomato ripeness recognition in greenhouses is challenged by extreme illumination variations, including day and night conditions and supplemental lighting. By applying consistent preprocessing and enhanced multi-scale feature interaction, the model effectively localizes dense and occluded fruit clusters while maintaining high accuracy and real-time performance. It also generalizes well across tomato varieties, including yellow tomatoes.

Overview

In practical greenhouse harvesting scenarios, tomato picking robots face persistent perception challenges caused by extreme illumination variations between daytime and nighttime operation, widespread supplemental lighting, and local brightness inconsistencies. Existing tomato ripeness recognition models, typically developed under uniform lighting, fail to deliver reliable performance across the full range of real greenhouse environments.

To address this gap, we propose CICE-YOLO, a unified tomato ripeness recognition framework robust to daytime sunlight, nighttime conditions, and artificial supplemental lighting. This work represents the first systematic attempt to handle the large day-night illumination discrepancy within a single deployable model for greenhouse harvesting robots.

Method

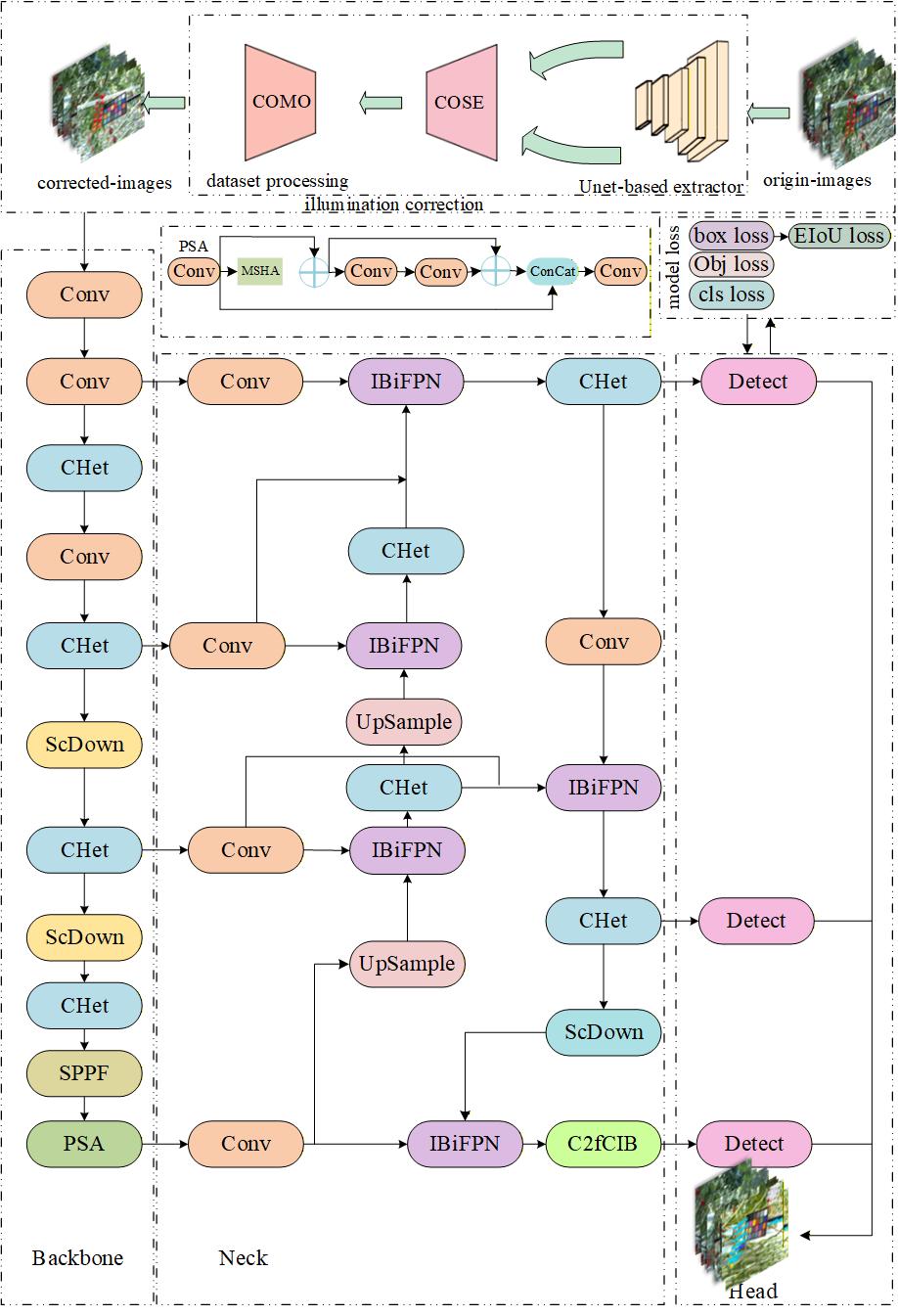

Figure 1: CICE-YOLO model architecture for tomato ripeness detection.

Dataset Processing: Applies consistent preprocessing to images across day, night, and supplemental lighting conditions to stabilize visual representations and reduce the impact of illumination variations.
CHet Backbone: Introduces heterogeneous convolutions to improve feature extraction for tomatoes of varying sizes and appearances.
IBiFPN Neck: Employs an Improved Bidirectional Feature Pyramid Network with learnable fusion weights to enable adaptive multi-scale feature aggregation, improving detection of occluded or partially visible fruits.
EIoU-based Detection Head: Uses EIoU loss to decouple width and height regression errors, resulting in more accurate bounding-box localization.

Experiments

The approach is validated through extensive experiments in real greenhouse environments, including daytime, nighttime, and supplemental lighting scenarios.

Red tomato experiments confirm high accuracy under complex lighting and occlusion.

Table 1: Performance comparison of CICE-YOLO with mainstream detection models.

Network	P (%)	R (%)	mAP50 (%)	F1 (%)	Model Size (M)
CICE-YOLO	84.2	79.6	85.9	82.0	6.2
YOLOv10n	81.3	76.9	81.7	79.0	5.8
YOLOv10s	81.4	80.1	82.3	80.0	16.5
YOLOv8n	75.9	77.7	78.7	77.0	6.2
YOLOv8s	80.5	80.1	81.6	80.0	22.5
SSD	81.5	67.6	78.7	73.6	23.8

Additional experiments on yellow tomato greenhouses demonstrate the model’s generalization capability across varieties with different color distributions.

Table 2: Experimental results of different networks on dataset2 (tomato ripeness detection).

Network	P (%)	R (%)	mAP50 (%)	F1 (%)
original-dataset2-YOLOv10n	59.9	59.5	59.2	55.0
illumination-corrected-dataset2-YOLOv10n	64.9	72.7	70.1	68.0
original-dataset2-CICE-YOLO	65.5	75.0	69.9	69.0
illumination-corrected-dataset2-CICE-YOLO	71.4	76.8	76.3	73.0

Computational efficiency and resource consumption are analyzed, with targeted optimizations ensuring suitability for real-time robotic deployment.

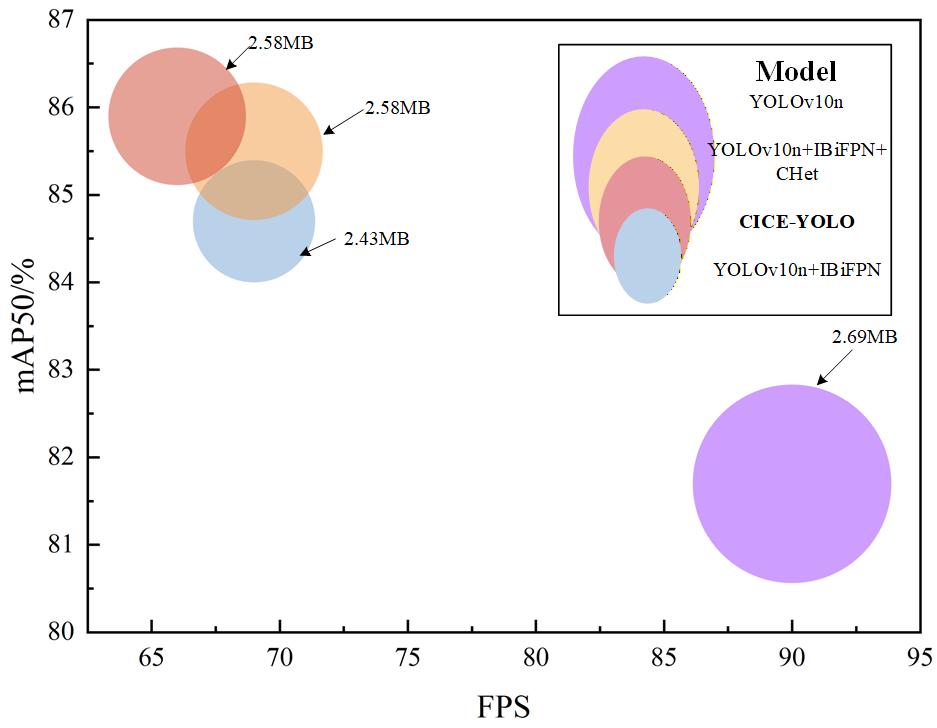

Figure 2: Comparison of parameters, mAP50, and FPS among YOLOv10n, YOLOv10n + IBiFPN, YOLOv10n + IBiFPN +CHet and CICE-YOLO

Public Release: A comprehensive greenhouse dataset covering all lighting scenarios for red and yellow tomatoes, along with trained detection models, is provided to support reproducibility and future research in agricultural vision under challenging illumination conditions.

Citation

@article{Lu2026CICEYOLO,
  title={CICE-YOLO: An improved YOLO-based network for tomato ripeness detection in Greenhouse},
  author={Ming Lu, Ricardo da Silva Torres, Fanjia Menga, Xin Wang},
  journal={},
  year={2026}
}

License

This project is released under the MIT License.
